Aztech HomePlug AV 200Mbps Ethernet Adapter with AC Pass-Through

Embarking on a concept of No New Wires® data communications, Aztech HL113EP transforms your in-house powerline into a networking infrastructure. Thus it successfully reduces "dead spot" and increases network coverage within your home.

Key Features:

  • Data transfer rate up to 200Mbps
  • Best use with Fibre Broadband
  • Noise-filtered pass-through power outlet
  • Plug and Play

The Aztech HL113EP HomePlug AV 200Mbps AC Pass-Thru Eth Adptr embarks on a concept of No New Wires® data communications, and it transforms your in-house powerline into a networking infrastructure. It successfully reduce "dead spot", increase throughput and increase network coverage within a home. Surf the Internet and share data at the speed up to 200Mbps PHY rates through powerline, in any outdoor environment and rest assured with the best security from eavesdroppers through encryption on the power circuit.

HL113EP HomePlug engine is a Qualcomm Atheros QCA6410 chipset. It features faster processing power, Fast Ethernet host interfaces and an enhanced analog front end. The solution is compliance with IEEE1901 and Homeplug AV, hence allowing hassle free compatibility with existing Homeplug AV devices and other suppliers of IEEE1901 PLC (Powerline Line Communication) devices.

Enhanced Quality of Service (QOS) also provides the guaranteed bandwidth reservations for multimedia payloads including TV over IP (IPTV), higher data rate broadband sharing, Online-Gaming, VoIP Calls, extending Wireless LANs coverage, Audio-Video transmission across the network as well as Network camera connectivity.

Fuss-free Set-up with Simple Connect
No configuration or software is required to pair Aztech HomePlugs. The ""Simple Connect"" button doubles as a security feature supported with 128-bit AES Hardware encryption, ensuring the network communications is free from eavesdroppers and hackers.

Noise-filtered pass-through power outlet
The embedded pass through electricity socket ensures that the user does not lose a wall socket, as well as it provides an AC filtering circuit to ensure that the HL113EP is isolated from locally generated AC noise sources connected to the socket."


  • IEEE 1901/HomePlug AV Compliant
  • Co- existence with HomePlug 1.0 Nodes
  • Compliant to EuP requirements
  • IEEE 802.3 10/100 Ethernet
  • IEEE 802.3az support

Data Transfer Rate

  • Up to 200Mbps over powerline

Modulation Support

  • OFDM 4096
  • OFDM 1024
  • OFDM 256
  • OFDM 64
  • OFDM 16
  • OFDM 8-QAM
  • QPSK
  • BPSK
  • ROBO

Frequency Band

  • 2MHz to 30MHz band

Quality of Service (QoS)

  • Priority-based CSMA/CA channel access schemes maximize efficiency and throughput
  • Integrated Quality of Service (QoS) Enhancements
  • Hardware Packet Classifiers for ToS, CoS and IP Port Number
  • Supports IGMP managed multicast session

Diagnostic and Management Interface

  • Homeplug AV generic and vendor specific Management Message Entries (MME)

Security Support

  • 128-bit AES Link Encryption with key management


  • SPI Flash : 2 MB

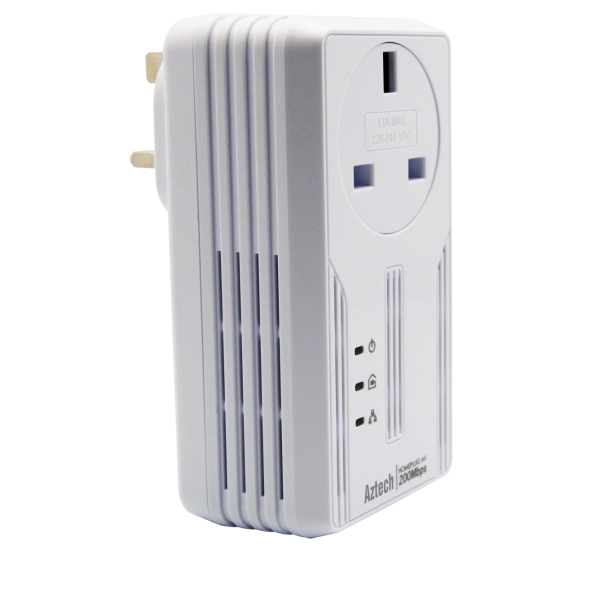

AC Pass Through Power Socket

  • Current Rating: 13A max (UK), 16A max (DEU)


  • Qualcomm Atheros QCA6410 chipset

Platform Support

  • OS Independent with TCP/IP protocol installed

Power Supply

  • Switch Mode 100V-240V Supply

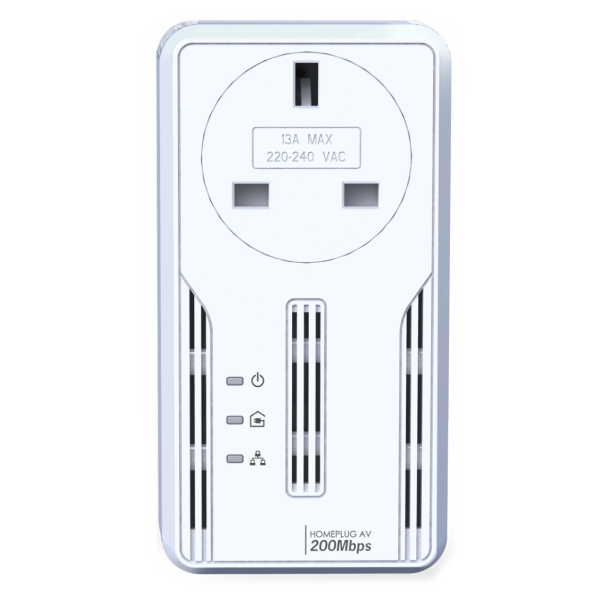

LED Indicators

  • 1 x Power LED (Green)
  • 1 x Powerline Link/Activity Status LED (Bicolor)
  • 1 x Ethernet Link/Activity Status LED (Green)

External Connectors

  • 1 x Electrical plug (available for UK and Europe)
  • 1 x AC Pass-through Socket (available for UK and Europe)

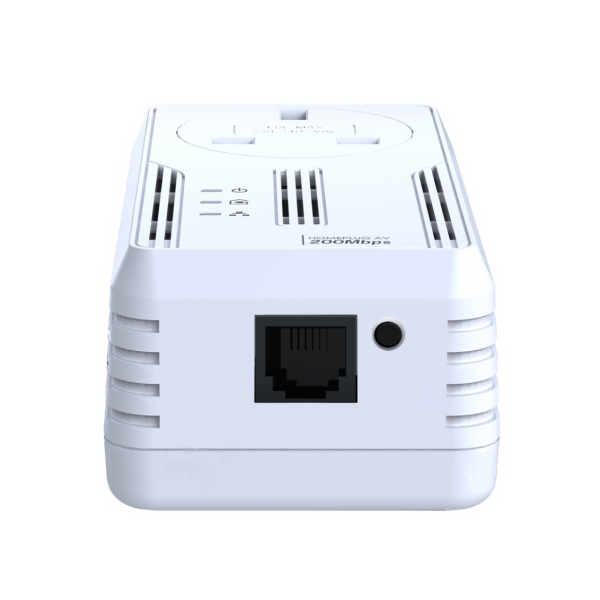

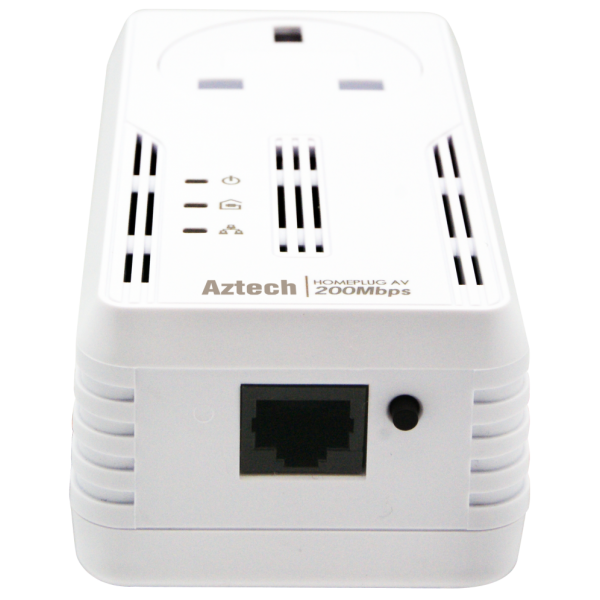

  • 1 x RJ45 for 10/100 Ethernet

Push Button/Switch

  • 1 x Configuration Push Button (for Simple Connect and Factory Default Reset)

Resin/Plastic Casing

  • Polycarbonate, FR rating UL94-V0


  • 116(H) mm x 62(W) mm x 42(D) mm


  • 200g

Power Consumption

  • 2.0 Watt (230Vac)

Platform Support

  • Windows 98SE
  • Windows 2000
  • Windows ME
  • Windows XP 32bit
  • Windows Vista 32bit
  • Windows 7/8 (32/64-bit)


  • Operating : 0° to 40° Celsius, 32° to 104° Fahrenheit
  • Non-Operating : -25° to 70° Celsius, -13° to 158° Fahrenheit


  • Operating : 30% to 80% Relative Humidity (Non-Condensing)
  • Non-Operating : 30% to 95% Relative Humidity (Non-Condensing)
